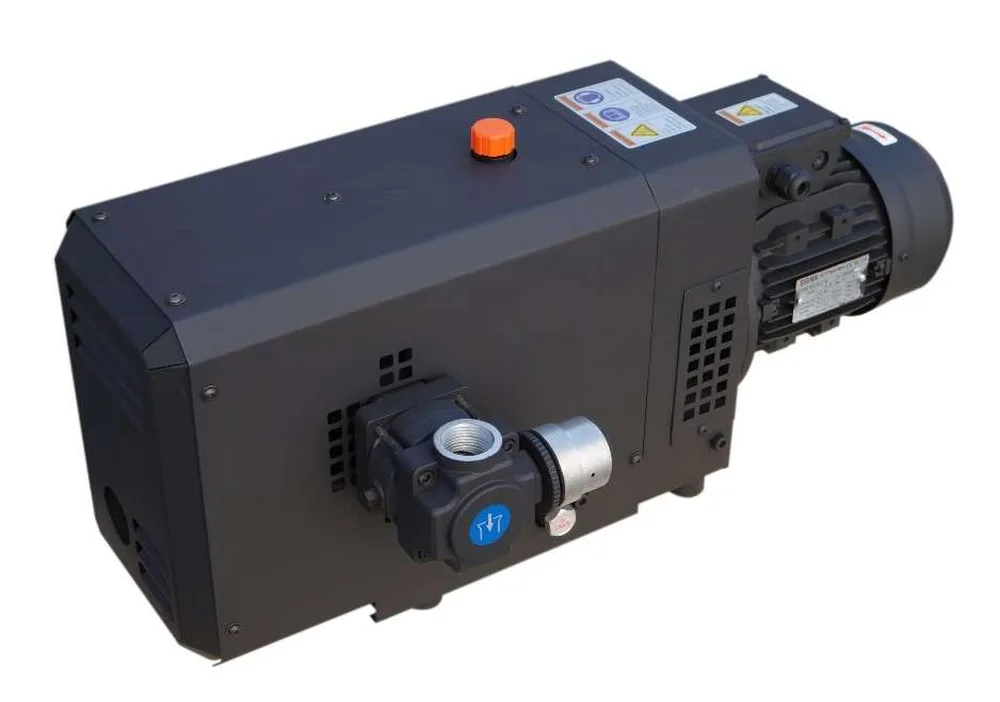

Oil-free claw vacuum pumps
Dry-running, contact-free claw vacuum pumps for clean industrial vacuum. Air-cooled or water-cooled, direct driven and built for continuous duty. 19 models from 30 to 1,140 m³/h.
Dry running, nothing to wear
The two claws turn in opposite directions without touching each other or the housing. The pumping chamber and the gear chamber are separated by labyrinth seals, so no oil reaches the vacuum side. Gears synchronize the claws with oil lubrication kept in the gear chamber.
Oil-free and contact-free
Dry-running, contact-less design. Nothing from the pump contaminates your process.
Built-in non-return valve
An anti-suck-back valve in the inlet flange stops air from flowing back into the vacuum chamber when the pump stops.
Air or water cooling
Air-cooled and direct driven, or water-cooled for the lowest operating temperature and the deepest continuous vacuum.
CE certified
The range is CE certified (declaration of conformity).
Typical applications. Packaging, CNC routing, woodworking, pneumatic conveying, holding and lifting, pick and place, medical and laboratory, plastics industry and central vacuum systems.
Choose your vacuum pump
19 models in five groups. Pumping speed is shown at 60 and 50 Hz. Ultimate vacuum is the deepest absolute pressure the pump reaches; continuous vacuum is the absolute pressure it can hold in continuous operation. Send us your flow and vacuum level and we confirm the model.
STRV-30 · 60 · 80 · 100C
| Model | Pumping speed, 60 Hz | Pumping speed, 50 Hz | Ultimate vacuum, mbar abs | Continuous vacuum, mbar abs | Motor, 60 / 50 Hz |
|---|---|---|---|---|---|
| STRV-30 | 30 m³/h 18 cfm | 25 m³/h 15 cfm | 180 (60 Hz) · 120 (50 Hz) | 180 (60 Hz) · 120 (50 Hz) | 0.75 / 0.75 kW |
| STRV-60 | 72 m³/h 42 cfm | 60 m³/h 35 cfm | 50 | 100 | 1.5 / 1.1 kW |
| STRV-80 | 90 m³/h 53 cfm | 75 m³/h 44 cfm | 50 | 50 | 2.2 / 1.5 kW |
| STRV-100C | 120 m³/h 71 cfm | 100 m³/h 59 cfm | 50 | 150 | 3 / 2.2 kW |
| Model | Noise, 60 / 50 Hz | Gear box oil | Inlet / outlet | Footprint, mm | Length 60 / 50 Hz, mm | Weight, 60 / 50 Hz |
|---|---|---|---|---|---|---|
| STRV-30 | 72 / 70 dB(A) | 0.75 L | 1" / 1/2" | 321 × 461 | 736 / 736 | 53 / 51 kg |
| STRV-60 | 80 / 78 dB(A) | 0.6 L | 1" | 321 × 461 | 758 / 736 | 60 / 55 kg |
| STRV-80 | 70 / 68 dB(A) | 0.7 L | 1-1/4" / 1" | 340 × 461 | 716 / 691 | — |
| STRV-100C | 77 / 76 dB(A) | 0.75 L | 1-1/2" | 548 × 399 | 720 / 709 | 111 / 106 kg |
STRV-105 · 155
| Model | Pumping speed, 60 Hz | Pumping speed, 50 Hz | Ultimate vacuum, mbar abs | Continuous vacuum, mbar abs | Motor, 60 / 50 Hz |
|---|---|---|---|---|---|
| STRV-105 | 120 m³/h 71 cfm | 100 m³/h 59 cfm | 50 | 100 | 3 / 2.2 kW |
| STRV-155 | 180 m³/h 106 cfm | 150 m³/h 88 cfm | 50 | 100 | 4 / 3 kW |
| Model | Noise, 60 / 50 Hz | Gear box oil | Inlet / outlet | Footprint, mm | Length 60 / 50 Hz, mm | Weight, 60 / 50 Hz |
|---|---|---|---|---|---|---|
| STRV-105 | 75 / 73 dB(A) | 0.4 L | 1-1/2" | 434 × 524 | 797 / 774 | — |
| STRV-155 | 76 / 73 dB(A) | 0.4 L | 1-1/2" | 434 × 524 | 822 / 797 | — |
STRV-255 · 305 · 405 · 515
| Model | Pumping speed, 60 Hz | Pumping speed, 50 Hz | Ultimate vacuum, mbar abs | Continuous vacuum, mbar abs | Motor, 60 / 50 Hz |
|---|---|---|---|---|---|
| STRV-255 | 300 m³/h 177 cfm | 250 m³/h 147 cfm | 50 | 200 | 5.5 / 5.5 kW |
| STRV-305 | 360 m³/h 212 cfm | 300 m³/h 177 cfm | 50 | 200 | 7.5 / 5.5 kW |
| STRV-405 | 480 m³/h 283 cfm | 400 m³/h 235 cfm | 50 | 200 | 9.2 / 7.5 kW |
| STRV-515 | 600 m³/h 353 cfm | 500 m³/h 294 cfm | 50 | 200 | 11 / 9.2 kW |
| Model | Noise, 60 / 50 Hz | Gear box oil | Inlet / outlet | Footprint, mm | Length 60 / 50 Hz, mm | Weight, 60 / 50 Hz |
|---|---|---|---|---|---|---|
| STRV-255 | 76 / 73 dB(A) | 0.8 L | 2" / 1-1/2" | 501 × 685 | 961 / 961 | — |
| STRV-305 | 77 / 75 dB(A) | 0.8 L | 2" / 1-1/2" | 501 × 685 | 975 / 975 | — |
| STRV-405 | 78 / 76 dB(A) | 1.5 L | 3" / 2-1/2" | 586 × 695 | 1,105 / 1,065 | — |
| STRV-515 | 78 / 76 dB(A) | 1.5 L | 3" / 2-1/2" | 586 × 695 | 1,291 / 1,120 | — |
STRV-1005
Large model: STRV-1005. Configured with two silencers for compact installation. A 4 in. aluminum check valve and an inlet filter (flanged) can be supplied separately. It suits frequency-controlled drives for energy savings.
| Model | Pumping speed, 60 Hz | Pumping speed, 50 Hz | Ultimate vacuum, mbar abs | Continuous vacuum, mbar abs | Motor, 60 / 50 Hz |
|---|---|---|---|---|---|
| STRV-1005 | 1,140 m³/h 671 cfm | 950 m³/h 559 cfm | 50 | 200 | 22 kW (30 hp) / 18.5 kW (25 hp) |
| Model | Noise, 60 / 50 Hz | Gear box oil | Inlet / outlet | Footprint, mm | Length 60 / 50 Hz, mm | Weight, 60 / 50 Hz |
|---|---|---|---|---|---|---|
| STRV-1005 | 85 / 82 dB(A) | 2.8 L | Flange DN100 PN6 / PN10 | — | — | — |
Water-cooled: STRV-105-WC to STRV-1005-WC
Water cooling in the gear box and the cylinder keeps bearings, shaft seals, gears and gear box oil at a low operating temperature. That extends their life and lets the pump run continuously at its ultimate vacuum.
| Model | Pumping speed, 60 Hz | Pumping speed, 50 Hz | Ultimate vacuum, mbar abs | Continuous vacuum, mbar abs | Motor, 60 / 50 Hz |
|---|---|---|---|---|---|
| STRV-105-WC | 120 m³/h 71 cfm | 100 m³/h 59 cfm | < 30 | < 30 | 3 / 2.2 kW |
| STRV-155-WC | 180 m³/h 106 cfm | 150 m³/h 88 cfm | < 30 | < 30 | 4 / 3 kW |
| STRV-255-WC | 300 m³/h 177 cfm | 250 m³/h 147 cfm | < 30 | < 30 | 5.5 / 5.5 kW |
| STRV-305-WC | 360 m³/h 212 cfm | 300 m³/h 177 cfm | < 30 | < 30 | 7.5 / 5.5 kW |
| STRV-330-WC | 390 m³/h 230 cfm | 330 m³/h 194 cfm | < 30 | < 30 | 7.5 / 5.5 kW |
| STRV-405-WC | 480 m³/h 283 cfm | 400 m³/h 235 cfm | < 30 | < 30 | 9.2 / 7.5 kW |
| STRV-515-WC | 600 m³/h 353 cfm | 500 m³/h 294 cfm | < 30 | < 30 | 11 / 9.2 kW |
| STRV-1005-WC | 1,140 m³/h 671 cfm | 950 m³/h 559 cfm | < 30 | < 100 | 22 / 18.5 kW |
| Model | Noise, 60 / 50 Hz | Gear box oil | Inlet / outlet | Footprint, mm | Length 60 / 50 Hz, mm | Cooling water, L/min |
|---|---|---|---|---|---|---|
| STRV-105-WC | 75 / 73 dB(A) | 0.4 L | 1-1/2" | 434 × 524 | 797 / 774 | > 2 |
| STRV-155-WC | 76 / 73 dB(A) | 0.4 L | 1-1/2" | 434 × 524 | 822 / 797 | > 2 |
| STRV-255-WC | 76 / 73 dB(A) | 0.8 L | 2" / 1-1/2" | 501 × 685 | 978 / 978 | > 2 |
| STRV-305-WC | 77 / 75 dB(A) | 0.8 L | 2" / 1-1/2" | 501 × 685 | 982 / 982 | > 2 |
| STRV-330-WC | 77 / 75 dB(A) | 0.8 L | 2" / 1-1/2" | 501 × 685 | 982 / 982 | > 2 |
| STRV-405-WC | 78 / 76 dB(A) | 1.5 L | 3" / 2-1/2" | 586 × 695 | 1,105 / 1,065 | > 4 |
| STRV-515-WC | 78 / 76 dB(A) | 1.5 L | 3" / 2-1/2" | 586 × 695 | 1,291 / 1,120 | > 4 |
| STRV-1005-WC | 85 / 82 dB(A) | 2.8 L | DN100 | 785 × 1266 | 1,475 / 1,410 | > 6 |
Noise is the average level in dB(A), ±3 tolerance. Footprint is W × H in mm (W × H for most models, L × W × H for STRV-30 and 60 where length is shown). Length varies with the motor. Oil is not included in the weights. STRV-30 is the same pump as STRV-60 with a 4-pole motor.
Speed 3450 rpm at 60 Hz and 2850 rpm at 50 Hz (STRV-30: 1715 / 1430 rpm). Voltages 208–230/460 V, 220–240/380–420 V and 400/690 V. Ambient operating temperature 5 to 40 °C. Connections are BSP(G) threads, NPT available on request. Accessories included: non-return valve, vacuum regulator and exhaust silencer. Water-cooled models need cooling water below 25 °C recommended (up to about 30 °C). A gas-tight version is available on request.
Tell us your flow and vacuum level
Pumping speed, vacuum level, duty cycle and electrical supply: we come back with the right model and a quote. Datasheets on request.
Questions about claw vacuum pumps
What is a claw vacuum pump?
A claw vacuum pump is a dry-running rotary pump. Two claw-shaped rotors turn in opposite directions without touching each other or the housing, so no oil is used in the pumping chamber and the vacuum stays clean.
Air-cooled or water-cooled?
Air-cooled pumps are the simple choice for most uses. The water-cooled versions cool the gear box and the cylinder, which gives a lower operating temperature, a deeper vacuum (below 30 mbar abs) and continuous operation at that vacuum on most models.
What is the difference between ultimate and continuous vacuum?
Ultimate vacuum is the deepest absolute pressure the pump can reach. Continuous vacuum is the absolute pressure it can hold in continuous duty. Both are given in the tables, in mbar absolute.
What is the pump used for?
Packaging, CNC routing, woodworking, pneumatic conveying, holding and lifting, pick and place, medical and laboratory, plastics industry and central vacuum systems.
How do I choose the model?
Send us the pumping speed you need, the vacuum level, the duty cycle and your electrical supply (60 or 50 Hz). We confirm the model and the motor.
